Specifications

A Test Bench to hold Pump, Control Valves, Piping and other instrumentation as per requirement.

     A power pack which will work as prime mover for the system.
         a. Variable Frequency Drive to change the rpm
         b. Pump mounting arrangement
         c. Hydraulic Tank
         d. Heater/ Cooling pack to manage the Hydraulic Oil Temp.
         e. Control panel to manage the Power Pack.
An arrangement (stepper Motor) to push/pull the spool in steps and up to ±15 mm on both sides.
Encoder or arrangement to provide the feedback of the travel of spool.
Pressure transmitter’s to measure the Line pressure .
A temp transmitter to measure the Oil Temp as per schematic.
Flow meter’s to measure the flow as per schematic.
A Loading Valve to load the Pump.
Data logger/controller to record the Pressure, Flow, Temp & displacement against time and to control the Stepper motors.

About

ASTA Technologies is technology driven company based in New Delhi, India. We have domain expertise in various verticals and we specializes in providing end-to-end solutions for Test & Measurement, Automation, Data Acquisition, Labview software development, Mechanical System Design and Manufacturing.

Latest Portfolio

We have summarized our work history and projects details in our latest portfolio.

Products

: Automation

: Real Time Systems

: Test Rigs Design and Manufacturing

: Energy Monitoring System

Services

: Mechanical System Design and Manufacturing

: LabVIEW Software Development

: Data Acquisition Systems and Services

: Electrical Panel Work

Contact Us

India Office :
Corporate Office
Plot No. 49, Third Floor, Sector 12-B,
Dwarka, New Delhi – 110043 (India)
Phone: +91 (11) 476 - 53521

Registered Office
Plot No. 103, Hall - 7, Sector 24
Faridabad, Haryana – 121005 (India)
Phone: +91 (129) 432 - 3366

Email : info@astatechnologies.com

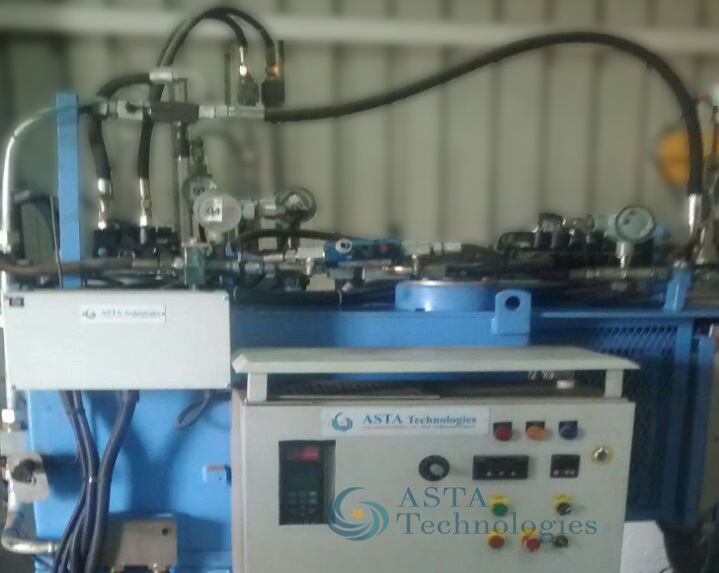

Spool Valve Test Rig
