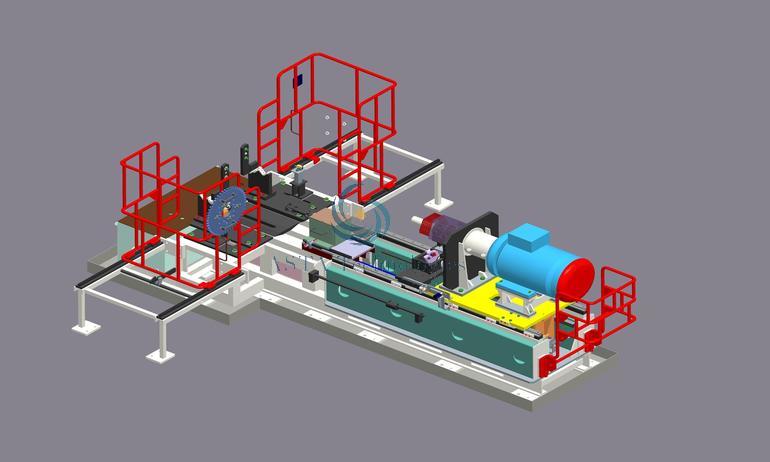

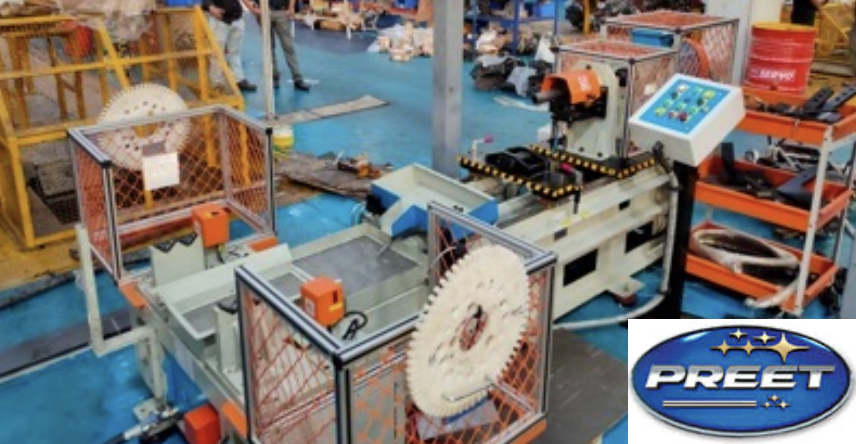

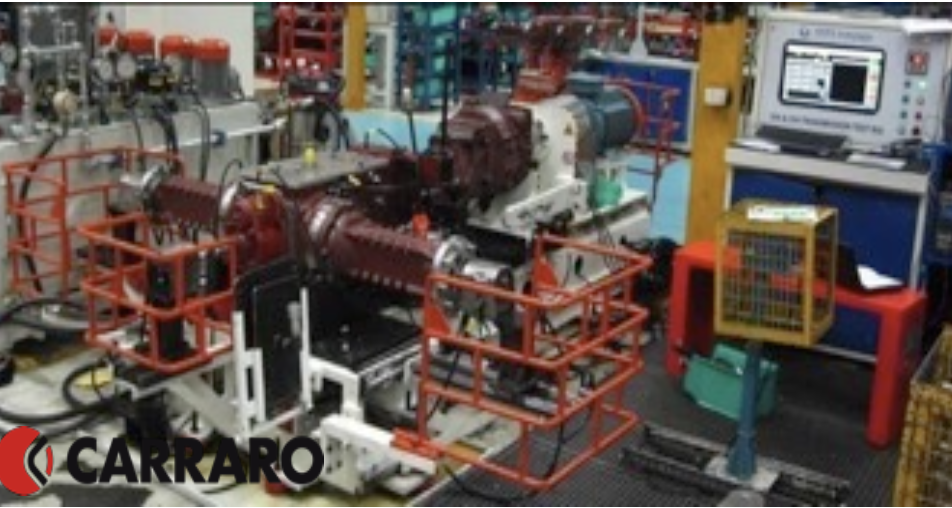

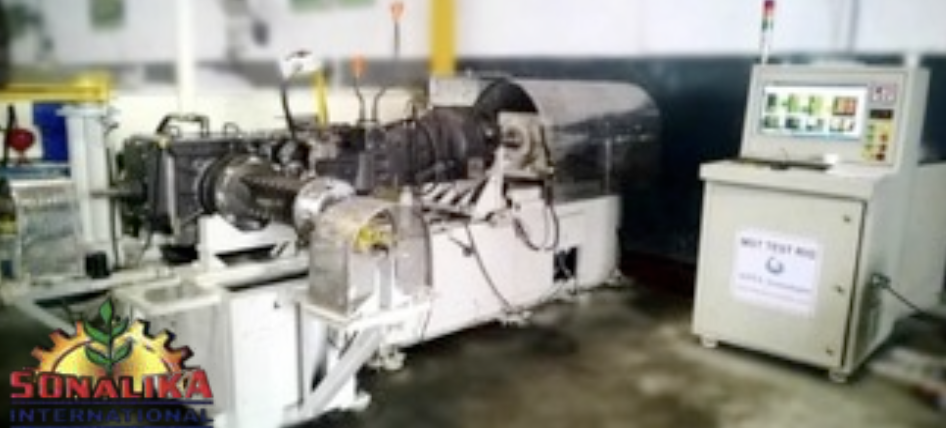

Transmission test rigs enable functional & durability testing of Transmission components at the End of Line.
Custom design and manufacturing of test rigs for testing transmission components including gearboxes, drive shafts, differentials and complete transaxles is undertaken.
Testrig For transmission comes with complete operational and analysis software made in NI LabVIEW with complete interface with Ni Hardware, Mechanical systems PLC’s and HMI.
- Transmission test
rig is for the performance and quality assurance testing for
Transmission on the production line.
- It involves a
development of testing system of transmission for different online
test RPM ratio test, Direction Test, Vibration Test and Run in

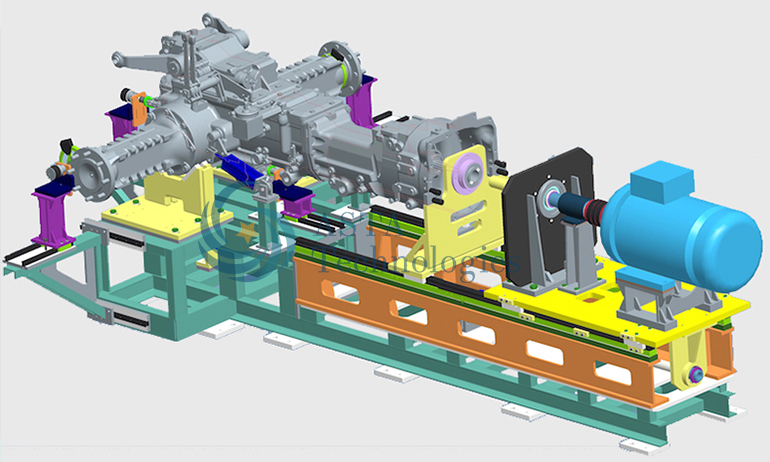

- Drive motor is
mounted on X direction adjustable system through hydraulic
- The system is with
NAS 9 Oil filtration system and inline torque and RPM measurement
- The Testing
software and system is designed on NI LabVIEW software and real
- The LH, RH Brakes
and Differential Lock are actuated through pneumatic actuators
during the testing.
- The PTO Lever
efforts are also tested through load cell attached to the pneumatic
